X-Ray Cheking the PCBA Quality

NEW CHIP18/11/2023292

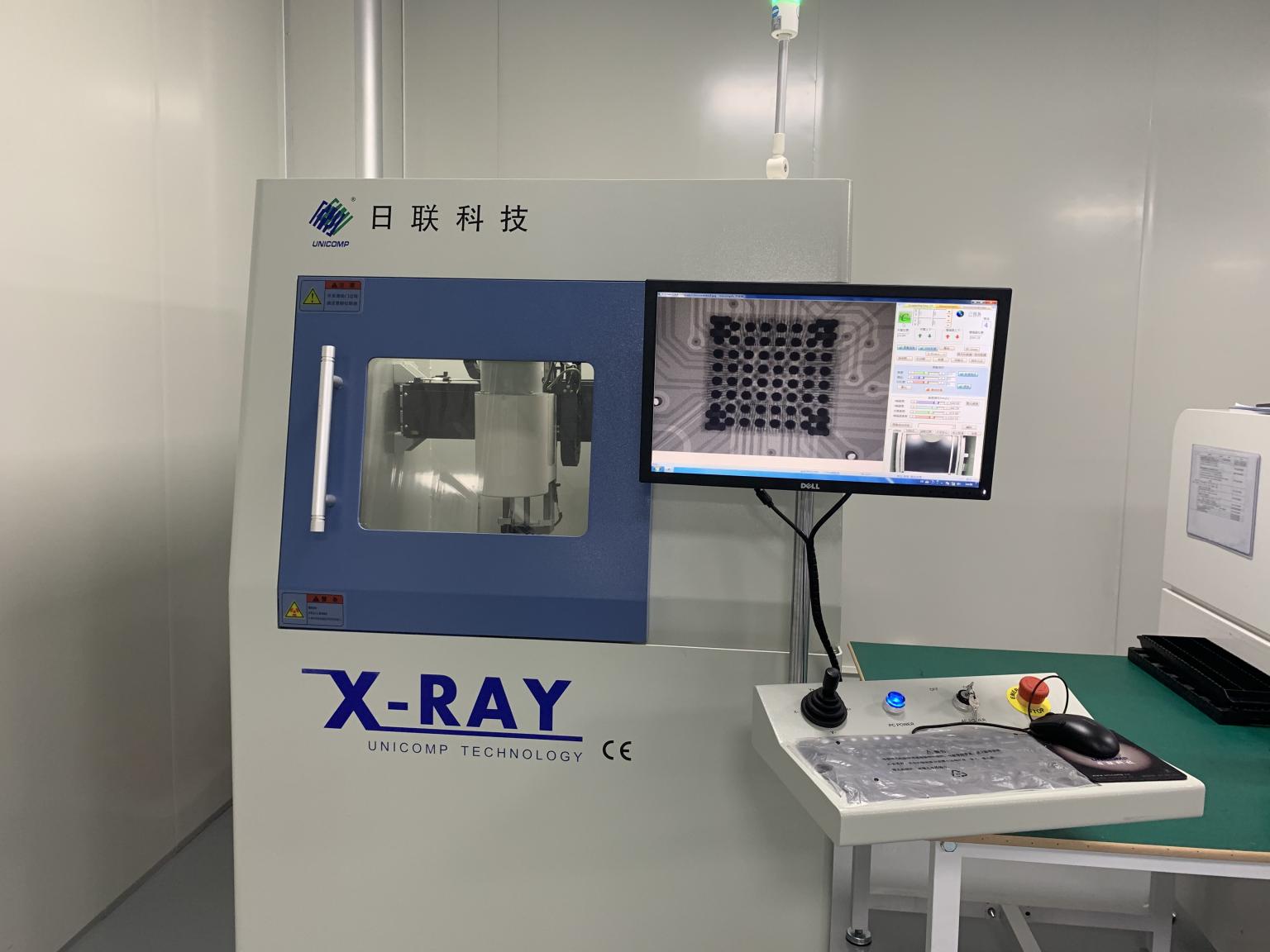

X-ray checking, also known as X-ray inspection or X-ray testing, is a non-destructive testing method commonly used to assess the quality of printed circuit board assemblies (PCBAs). This technique involves using X-rays to examine the internal structure of PCBAs, providing insights into potential defects, solder joint quality, and overall assembly integrity. Here are some key aspects of X-ray checking in the context of PCBA quality:

X-RAY CHEKING THE PCBA QUALITY


  1. 1.Solder Joint Inspection:

    • Void Detection: X-ray inspection can identify voids in solder joints, which are air pockets that can affect the structural integrity and electrical conductivity of the joint.

    • Solder Thickness: X-ray images can reveal the thickness and uniformity of solder joints, ensuring they meet the specified standards.

  2. 2.Component Placement and Alignment:

    • Correct Placement: X-ray checking helps confirm the accurate placement of components on the PCB. This is crucial for ensuring that each component is in its designated location.

    • Alignment: The alignment of fine-pitch components, such as ball grid arrays (BGAs) and chip-scale packages (CSPs), can be assessed using X-ray inspection.

  3. 3.Detecting Defects:

    • Open and Short Circuits: X-ray images can reveal the presence of open circuits (broken connections) or short circuits (unintended connections) on the PCB.

    • Component Defects: Defects such as cracks, voids, or misplaced components can be detected through X-ray inspection.

  4. 4.Quality of Through-Hole Components:

    • Through-Hole Solder Joints: X-ray can be used to inspect the quality of solder joints on through-hole components, ensuring proper wetting and fillet formation.

  5. 5.BGAs and CSPs Inspection:

    • Ball Integrity: For BGAs and CSPs, X-ray checking helps assess the integrity of solder balls underneath the components.

    • Hidden Defects: X-ray can reveal hidden defects in areas not visible through conventional optical inspection.

  6. 6.Advanced PCBAs:

    • Multilayer Inspection: X-ray inspection is particularly useful for assessing the quality of multilayer PCBs, where internal layers are not visible externally.

    • Microelectronics Inspection: In the case of microelectronics, where components are densely packed, X-ray can provide valuable insights into the assembly quality.

  7. 7.Post-Assembly Verification:

    • Post-Reflow Inspection: X-ray checking is often employed after the reflow soldering process to verify the quality of solder joints and identify any issues introduced during assembly.

X-ray checking is an essential tool in the quality control process for complex electronic assemblies, enabling manufacturers to identify and address potential issues without damaging the PCBAs. It complements other testing methods, contributing to the overall reliability and functionality of electronic devices.
